ATC Speaker Stands ATC SCM12 OM 44 speaker stands Custom Built OM44 Speaker Stands 4mm Acoustic Steel Top Plate Isolation 6mm CR4 Steel Isolation Base Plate Speaker Stand Support Purpose built ATC SCM Speaker stands Custom Built OM Speaker Stands Mass Loading Speaker Stands Book Shelf Speaker Stands Stand Mount Speaker Stands OM 44 Speaker Stands custom built All Design Copyright © to Custom Design (Newcastle) 2024


The ATC SCM12 OM 44 Speaker Stands have been designed especially for the ATC SCM speaker range with a quadrifid design available as standard 635mm finished height including base isolation spikes and manufactured with ERW 50.8mm x 50.8mm mild steel supports.
The ATC SCM12 OM 44 speaker stand design includes 4mm Inert Acoustic steel top plate and a 6mm CR4 steel base plate, when combined with zinc plated, allen key adjustable M8 base isolation spikes and M8 fixing bolts provide  total joint rigidity. The hand finished, polished acoustic steel isolation plates connect to ERW BS EN 10305-3 steel 50.8 x 50.8mm tubes, as standard for sound quality and as part of the Custom Design attention to detail philosophy.

Custom Design  manufacture the exclusive, world renowned, Inert, Acoustic Steel and Acoustic Aluminium products for total hifi isolation stands. The OM Speaker Support Stand Range are manufacture by the craftsman at Custom Design, creating a totally isolated, rigid speaker stand support with a medium, initial Mass, although this has been reduced by laser cutting the centre section of the acoustic steel top isolation plate and the CR4 6mm base plate.

Please remember before Mass loading the speaker stand steel support columns with Inert Filler, we suggested you listen to your music and system first and if the bass frequency requires a little more control then add Inert Filler, which greatly increases the final mass of the speaker stand, which in turn could effect the bass frequency more depending upon the speakers design and manufacturer. Inert Filler 1.7kg per bag and 13.5kg per box.

The modern, contemporary open design OM 44 speaker stands have true aesthetics especially with the ATC SCM12 speaker cabinet design. When combined with Inert Acoustic steel Top plates and CR4 Steel Base plates the reduction in resonance noise vibration is significant, resulting in an improved performance and sound quality. Please visit our Acoustic Steel page to view the graph demonstrating which frequencies of resonance vibration noise are absorbed by each process and the combination of Acoustic Steel top and base plates with our specially selected Inert Filler material.

ATC SCM12 OM 44 (Open Frame Medium Mass) Speaker Stands with 50.8 x 50.8mm supports.

ATC SCM12 OM 44 Speaker Stands are supplied as standard with Inert Acoustic Steel Isolation Top plates and 6mm CR4 steel Base plates.
ATC SCM12 Top Support 235mm wide x 235mm depth  x 4mm Acoustic Steel
Base Plate dimensions 285mm x 285mm x 6mm CR4 steel for superior finish
M8 Black zinc plated, Allen key Adjustable base isolation spikes supplied as standard with complimenting spike covers

20mm x 20mm x 8mm hifi isolation pads supplied as standard
Standard height available 610mm  Custom Heights available on request 635mm including base isolation spikes
Standard finishes: Black

Open Frame Medium Mass ATC SCM12 OM 44 speaker stands 14kg per pair without Inert Filler

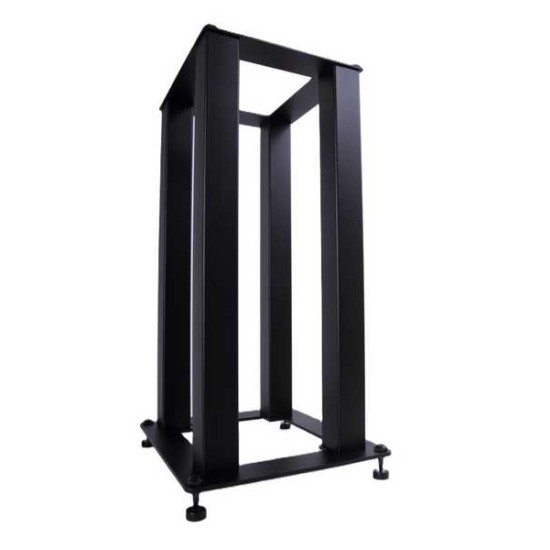

Image:  ATC SCM12 OM 44 Speaker Stands with a 4mm acoustic steel isolation top plate 235mm x 235mm x 635mm high including base isolation spike.
Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra

Image: ATC SCM12 OM 44 Speaker stands with a precision laser cut out 4mm CR4 Acoustic Steel Isolation Plate with 20mm x 20mm x 8mm isolation pads supplied as standard. Converts resonance energy to negiliable heat using a constrained layer dampening system

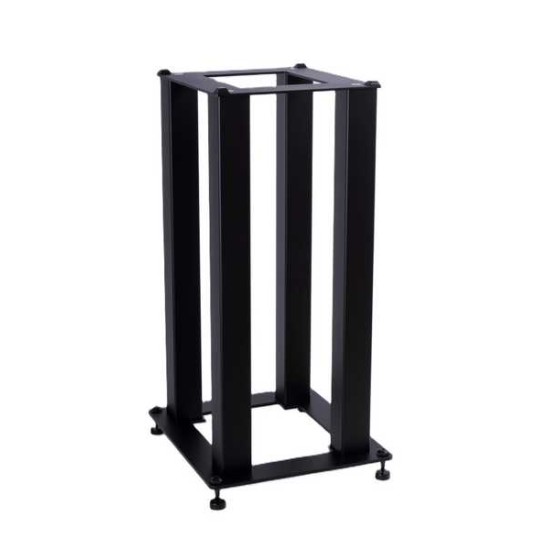

Image: ATC SCM12 OM 44 Speaker Stands Side View in Black

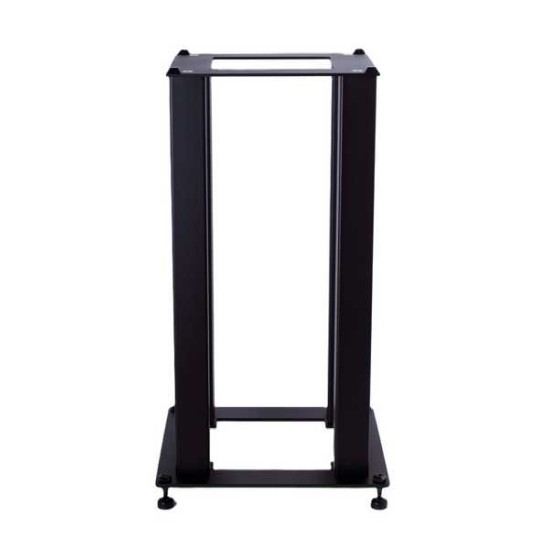

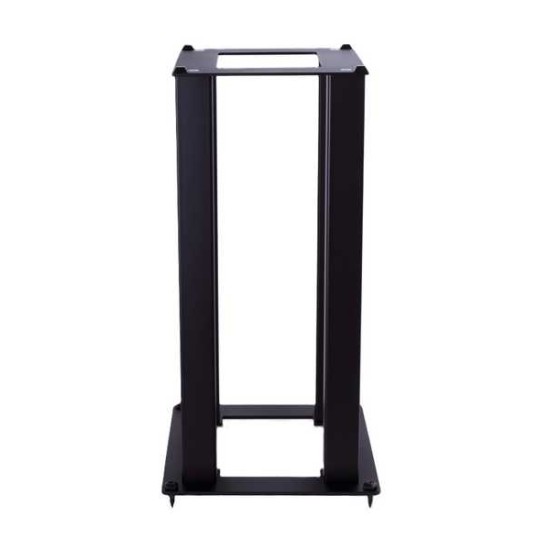

Image:  ATC SCM12 OM 44 Speaker Stands Front View in Black
Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra

Image: ATC SCM12 OM 44 Speaker Stands Side View in Black
Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra

Image: M8 Base Isolation Spike Black zinc plated with complimenting spike covers supplied as standard.

Image: Easy access allen key adjustable M8 base isolation spikes supplied as standard

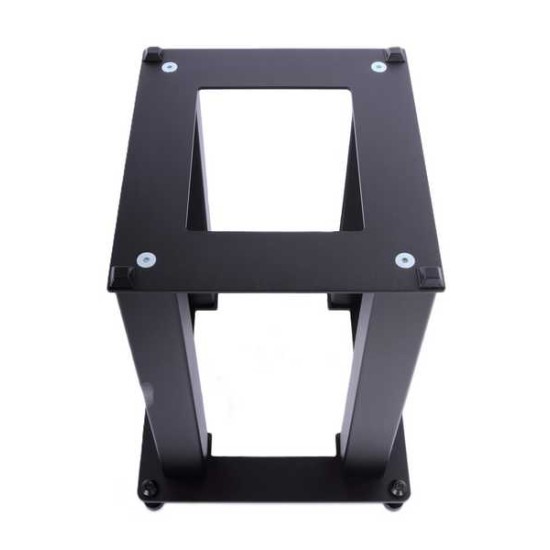

Image: ATC SCM12 OM 44 Speaker Stands Top View in Black

Image: ATC SCM12 OM 44 Speaker Stands Side View in Black

Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra

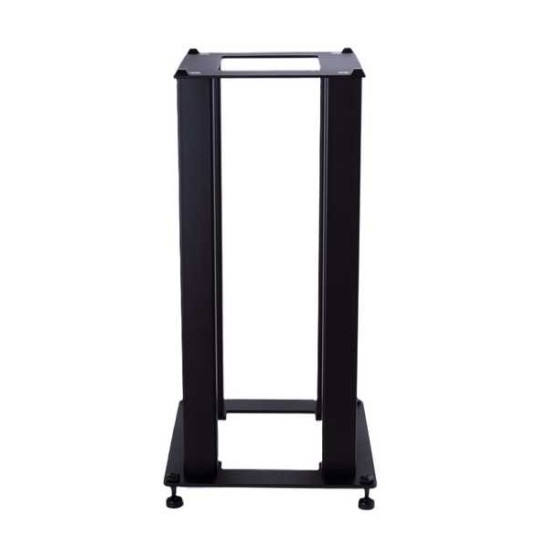

Image: ATC SCM12 OM 44 Speaker Stands Front View in Black
Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra

Image: Hifi Isolation Accessories 25mm dia solid aluminium floor protectors in Black set of 8 £39.99

Image: Inert Filler Custom Design exclusive speaker stand mass loading material, very high mass value, small particle size to kill voids inside support columns and easy to apply. 8 bags per box 13kg weight.
