The OM 44 XL Speaker Stands have been designed especially for the ATC, Spendor Classic, Harbeth and Graham Audio speaker cabinet with a quadrifid design available as standard 630mm finished height including base isolation spikes and manufactured with ERW 50.8mm x 50.8mm mild steel supports.
The OM 44 XL 180 speaker stand design includes 4mm Inert Acoustic steel top plate and a 6mm CR4 steel base plate, when combined with zinc plated, allen key adjustable M8 base isolation spikes and M8 fixing bolts provide total joint rigidity. The hand finished, polished acoustic steel isolation plates connect to ERW BS EN 10305-3 steel 50.8 x 50.8mm tubes, as standard for sound quality and as part of the Custom Design attention to detail philosophy.
Custom Design manufacture the exclusive, world renowned, Inert, Acoustic Steel and Acoustic Aluminium products for total hifi isolation stands. The OM Speaker Support Stand Range are manufacture by the craftsman at Custom Design, creating a totally isolated, rigid speaker stand support with a medium, initial Mass, although this has been reduced by laser cutting the centre section of the acoustic steel top isolation plate and the CR4 6mm base plate.
Please remember before Mass loading the speaker stand steel support columns with Inert Filler, we suggested you listen to your music and system first and if the bass frequency requires a little more control then add Inert Filler, which greatly increases the final mass of the speaker stand, which in turn could effect the bass frequency more depending upon the speakers design and manufacturer. Inert Filler 1.6kg per bag and 13kg per box.

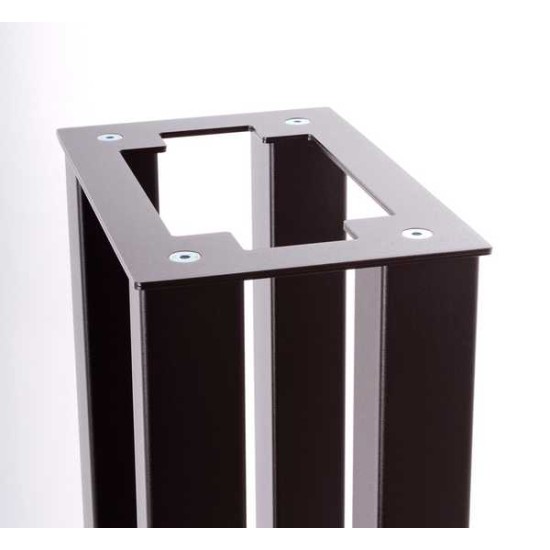

OM44 XL 180 speaker stands supplied as standard with 180 x 280 x 4mm laser precision cut out Acoustic Steel Isolation Top Plates
OM44 XL 180 speaker stands supplied as standard with 230 x 330 x 6mm CR4 steel base plate
OM44 XL 180 speaker stands supplied as standard with Custom Design specially commissioned M8 Black Zinc plated hifi isolation Feet
OM 44 XL 180 Open Frame Medium Mass Speaker Stands suppled as standard with 50.8 x 50.8 x 600mm supports, easily mass loaded with Inert Filler
OM44 XL 180 Speaker stands alternative choice M8 Black zinc plated Allen key Adjustable base isolation spikes on request
OM44 XL 180 speaker stands supplied as standard with 20mm x 20mm x 8mm hifi isolation pads
OM44 XL 180 speaker stands standard height available 610mm Custom Heights available on request 630mm including Custom Design Hifi Isolation feet
OM44 Speaker stands Standard finish Fine Black texture electro static powder coated for superior finish.
Inert Filler Custom Design Specialist Speaker stand mass loading material the only mass loading material recommended by Custom Design

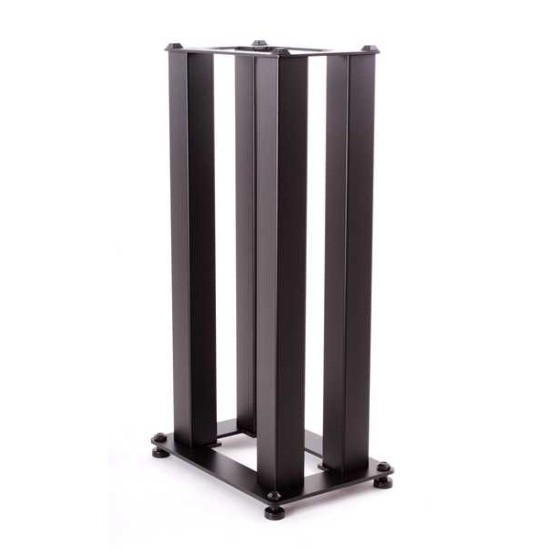

Image: OM 44 LX Speaker Stands with a 4mm acoustic steel isolation top plate 240mm x 260mm x 635mm high including base isolation spike.
Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra

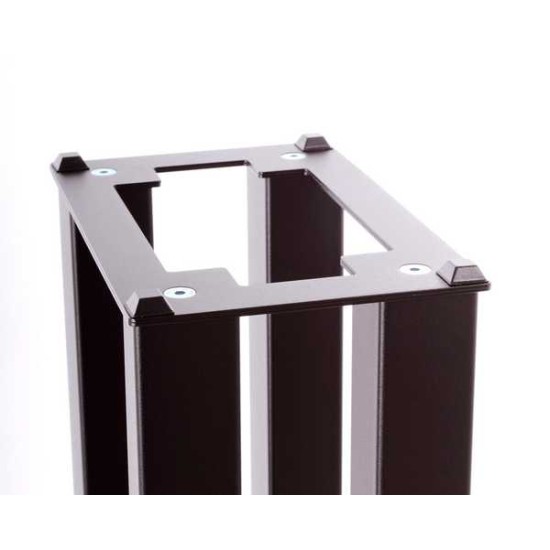

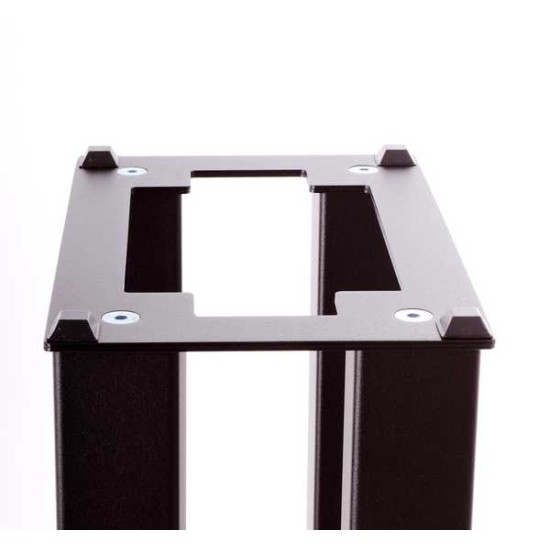

Image: OM 44 LX Speaker stands with a precision laser cut out 4mm CR4 Acoustic Steel Isolation Plate with 20mm x 20mm x 8mm isolation pads supplied as standard. Converts resonance energy to negillable heat using a constrained layer dampening system

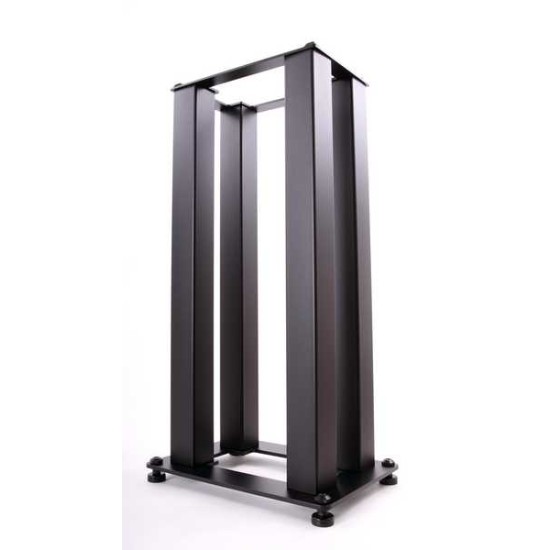

Image: OM 44 LX Speaker Stands Side View in Black

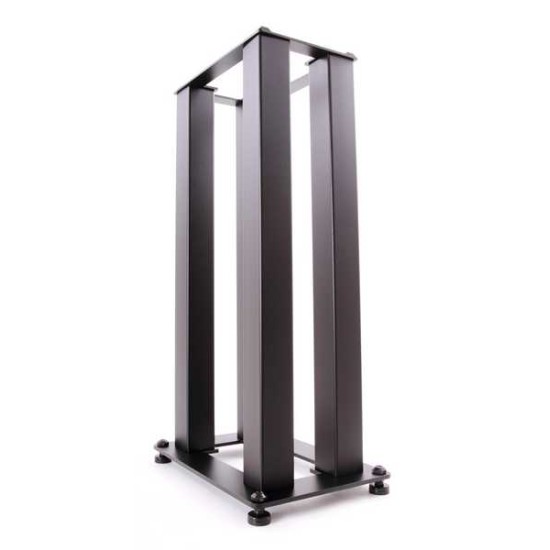

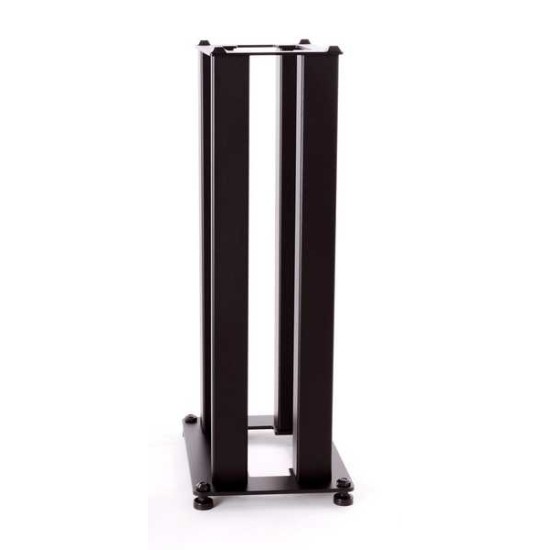

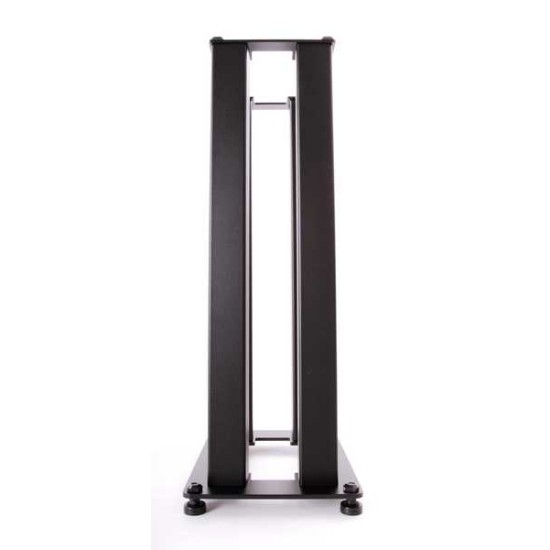

Image: OM 44 LX Speaker Stands Front View in Black Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra
Image: OM 44 LX Speaker Stands Side View in Black Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra

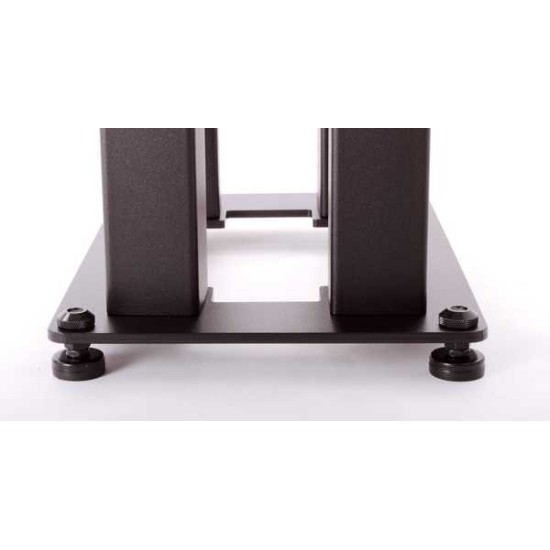

Image: M8 Base Isolation Spike Black zinc plated with complimenting spike covers supplied as standard.

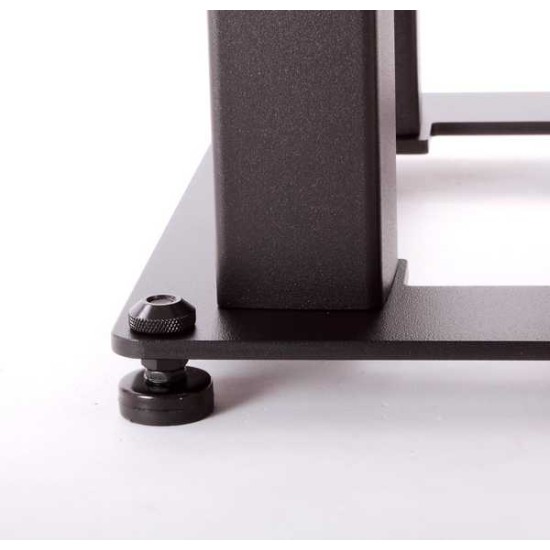

Image: Easy access allen key adjustable M8 base isolation spikes supplied as standard
Image: OM 44 LX Speaker Stands Top View in Black

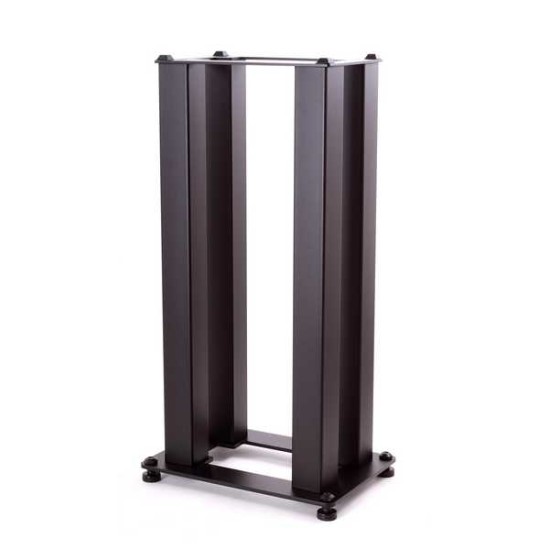

Image: OM 44 LX Speaker Stands Side View in Black
Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra
Image: OM 44 LX Speaker Stands Front View in Black Hifi Isolation Accessory 25mm dia solid aluminium floor protectors in Black set of £39.99 optional extra
Image: Hifi Isolation Accessories 25mm dia solid aluminium floor protectors in Black set of 8 £39.99
Image: Inert Filler Custom Design exclusive speaker stand mass loading material, very high mass value, small particle size to kill voids inside support columns and easy to apply. 8 bags per box 13kg weight.
